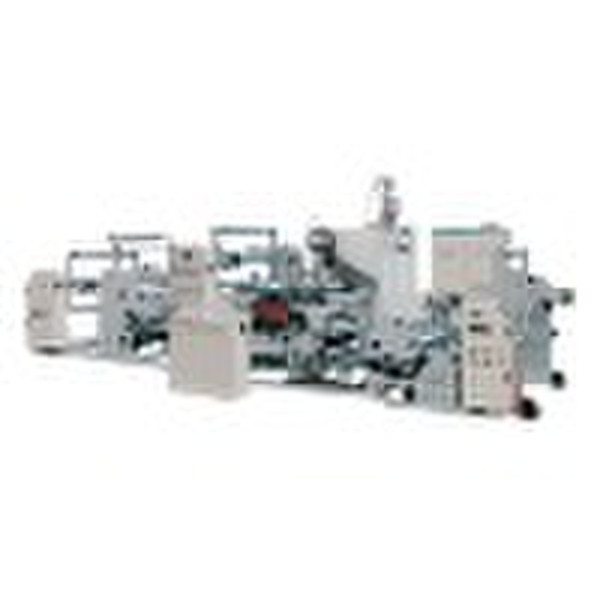

GF Series double-layer(three-layer) combined extru

This machine is a new kind of xtruding equipment disigned and createdby our company according to the technology from Europe and America.Thus,theextrusion press has some of features: 1) PLC man-machine interface centralized control assemblyand design integrating machinery with electricity and gas. 2) using high precision imported T-Die head. 3) introducing high speed and efficiency compounding screw(American technology) 4) adopting static and dynamic of compounding equipment(Italian technology) 5) applying high and newtechnology of ABA distributor(German technology) as a result, it can make two extruders to produce three-layer compound membrane. it can produce two differnent layers of extruding membrance. In another word,producing AB, BA extruding membrance synchronously. 6) improving the performance of compound material, eg. block function, adhesion function. 7) saving cost, using cheap PE instead of expensive EAA,which imported from The USA. using dosmetic PP replace overseas PP. Main technical parameters: Maximum extruding capacity240kg/hHighest speed of machine150m/min, 180m/min,260m/minExtruding membrane of thickness0.012mm-0.05mmError of thickness≤±3%(Internation standard)Adjustable range of thickness among layers0.006mm-0.05mmCompounding muti-layers at one timebacking material/A/B/A/backing materialWidthof coating machine1100mm,1300mm,1600mmApplicable materialBOPP,BOPET,BOPA,PAPER(50-20g/m2)Usable resin(coating film)LDPE,LLDPE,PP,EAA,EMA etc.Backing material of interlayer CPE,CPP,MCPP,MPET,AL,PAPERAC pre-coating film and ovenattaching cutter screw and 4m-2 section ovenDiameter of mainly unreeling 700mm-1500mm(extra-diameter)Diameter of interlayer unreeling500mm-700mmDiameter of rolling700mm-1500mm(extra-diameter) This T-Die head was imported from Taiwan,and it is one mainly part of usingABA distributor,in order to extrude A and B two differnet materials.Meanwhile, it can form AB or BA two different layers. The static and dynamic compouding technology was introded from Italy and America. Therefore, it forms high speed and high efficiency of compounding screw.
