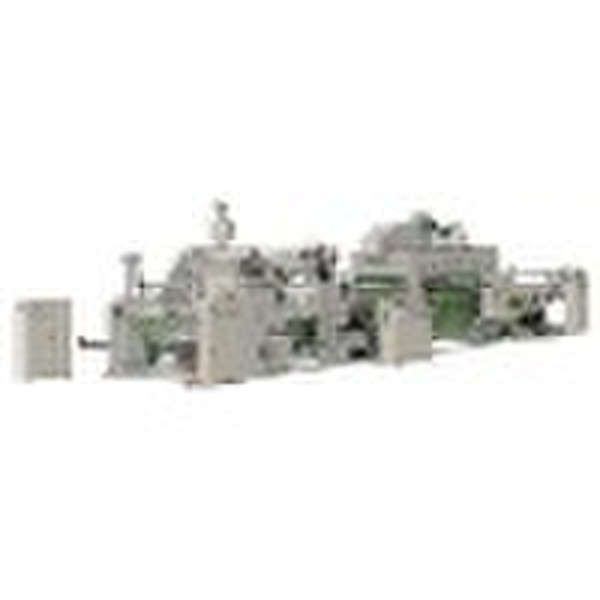

GF series plastic film coating line

GFseries plastic film coating line has some benefits,somedetails as following: a) High accuracy and edgeless imported die head. b) Mix-making worm with speedy and high efficiency. c) Static mix-making unit of new technology. d) Speedy replacing mesh unit. e) Wrap-up and unreeling receives material and replaces rolls automatically, under the speed of 150 m -180 m, it can change rolls automatically without stopping the machine. Among the accessory (II) unreeling replace rolls automatically is advancing at domestic. f) Equips with dry complex screw system, together with functions of this type. g) It could be fixed with single extruder, double extruders, multi-extrudersand mltilevel extruding synchronously Application range Producing methods Paper-plasticlaminatingSingle layer coating and laminating Aluminum-plasticlaminating Three-layers (interlayer) laminating Plastic-plasticlaminating Multi-layers laminating(with seven layers laminating at o Paper-aluminumplasticlaminatingone time) Main Technical Parameters Machine specifications1100/90mm,1100/100mm,1300/90mm,1500/105mm,1800/110mmMax speed of coating film150 m/min180m/min250m/minSuitable coating film resinLDPE,PP,EVA,EAAApplicable materialBOPP,BOPET,BOPA,CPP,CPE,paper,AL etcWidth of coating film1100mm 1300mm 1500mm 1800mmThickness of coating film0.012 0.05mmError of coating film thickness≤±5%(international stardard)compound cooling rollerD500mm,D600mm,D700mmWorm specifications(L/D)90:33,100:33,105:33,110:33Main unreeling diameter800mm to 1500mm ( big diameter)Auxiliary unreeling diameter500mmrollingdiameter800mm to 1700mm ( big diameter) This is a feetblock imported from Taiwan,in order to clear layer layout. This part was independent cutter surport machanism,withunreeling and breaking cylinder part. This is 4meter 2 section thermal control and drying oven,which is adapt for AC agent coating film.
